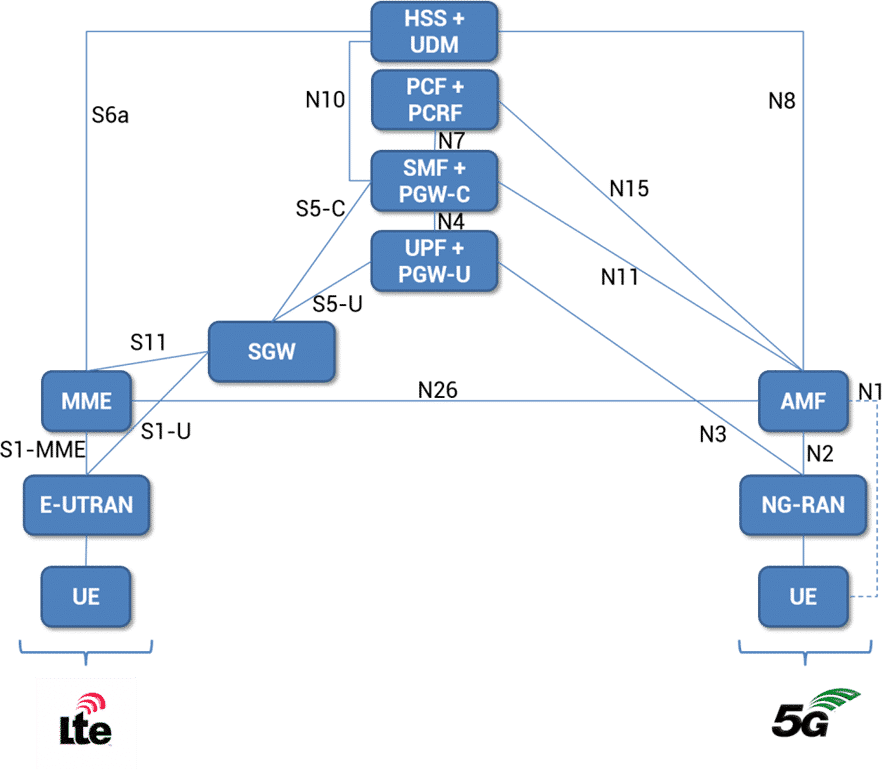

Core Network Architecture

• 4G CN functions
• MME: Mobility Management Entity – for intra 4G mobility and radio bearer activation / deactivation
• S-GW: Serving Gateway – for routing and forwarding ofuser data packets, mobility with 2G/3G

• P-GW: Packet Data Network Gateway – for connection with external packet data networks
• PCRF: Policy and Charging Rules Function – supports detection and charging of data flows
• HSS: Home Subscriber Server – for subscriber info

• 5G CN functions
• AMF: Access and Mobility Management Function – ensures part of 4G MME functions
• UPF: User Plane Function – combines user plane functions of 4G SGW-U and PGW-U
• PCF: Policy Control Function – equivalent to PCRF in 4G
• SMF: Session Management Function – combines some of MME, SGW-C and PGW-C control functions.
• UDM: Unified Data Management – equivalent to 4G HSS
